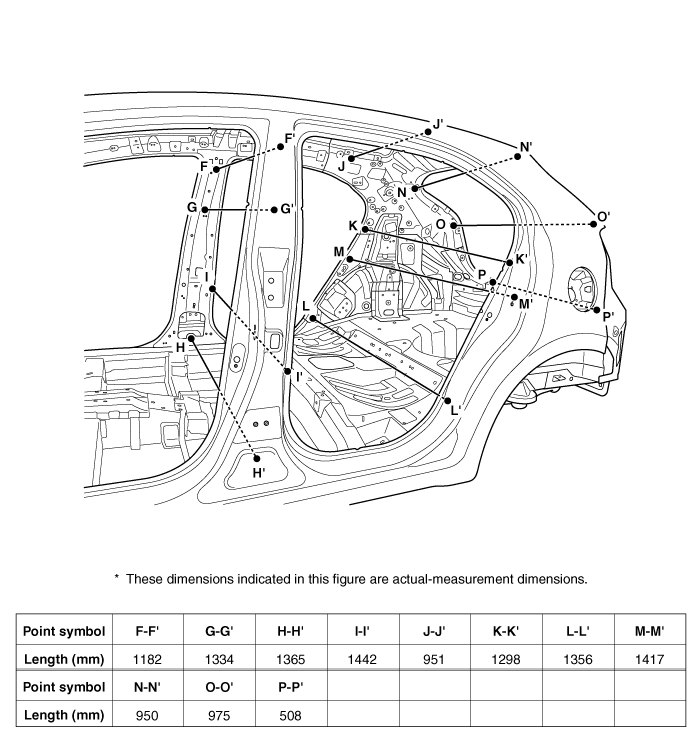

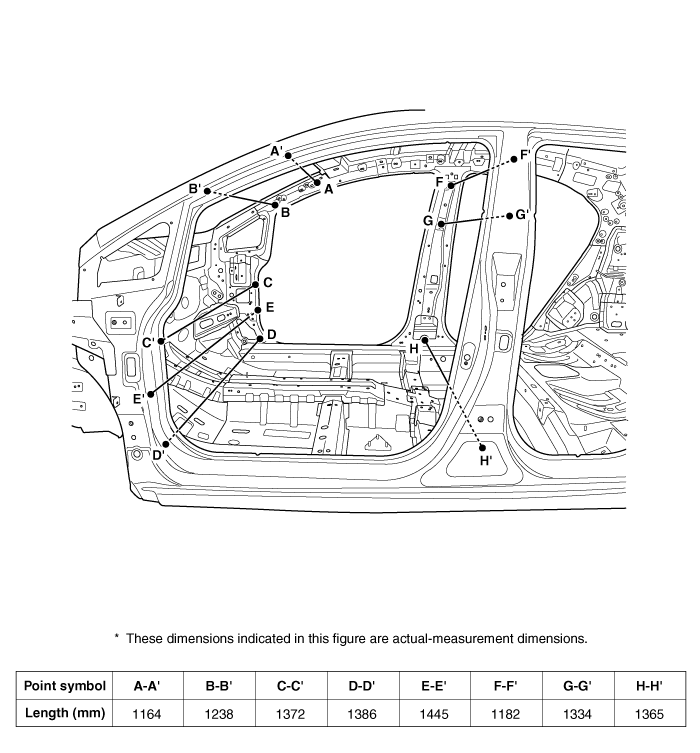

Kia Rio: 5Door Interior

5Door Side Body C

Side outer panel notch Side outer panel notch Side outer panel notch ...

5Door Rear Body

Side outer panel rear corner Tail gate hinge mounting hole (Ø14) Tail gate hinge mounting hole (Ø1 ...
