Kia Rio: Components
| 1. Cylinder head cover 2. Cylinder head cover gasket 3. Cylinder head assembly 4. Cylinder head gasket 5. Camshaft position sensor |
6. Camshaft bearing cap 7. Camshaft front bearing cap 8. OCV (Oil Control Valve) adapter 9. O-ring |

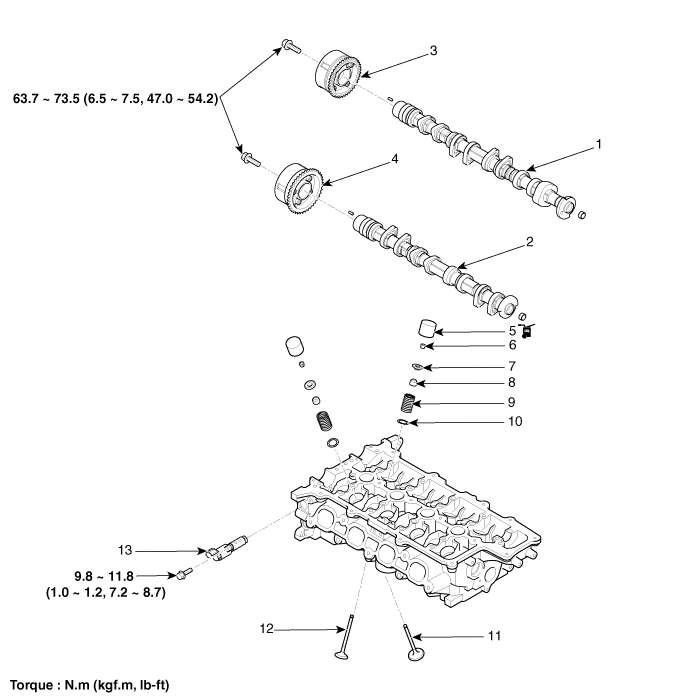

| 1. Exhaust camshaft 2. Intake camshaft 3. Exhaust CVVT assembly 4. Intake CVVT assembly 5. Mechanical Lash Adjuster (MLA) 6. Retainer lock 7. Retainer |
8. Valve stem seal 9. Valve spring 10. Valve spring seat 11. Intake valve 12. Exhaust valve 13. Oil Control Valve (OCV) |
Cylinder Head
