Kia Rio: Components

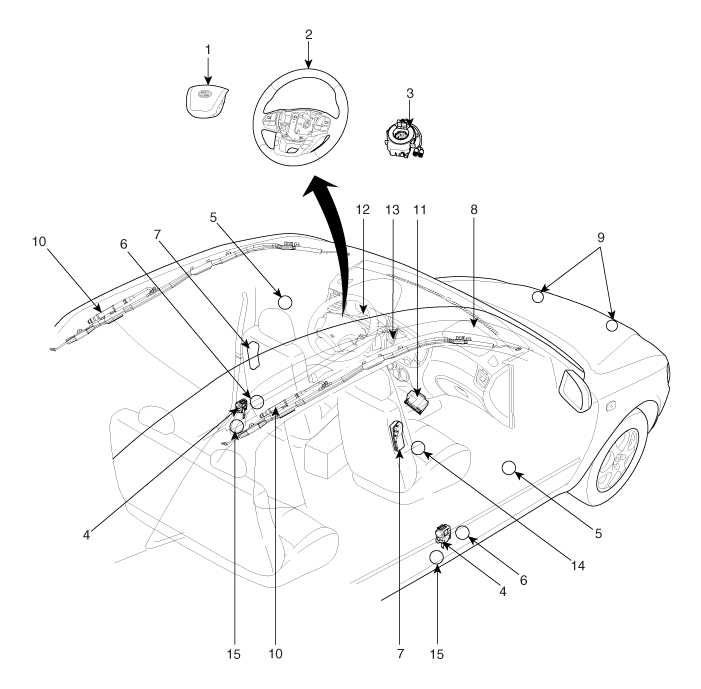

| 1. Driver Airbag (DAB) 2. Steering Wheel 3. Clock Spring 4. Seat Belt Pretensioner (BPT) 5. Pressure Side Impact Sensor (P-SIS) 6. Side Impact Sensor (SIS) 7. Side Airbag (SAB) 8. Passenger Airbag (PAB) |
9. Front Impact Sensor (FIS) 10. Curtain Airbag (CAB) 11. Supplemental Restraint System Control Module(SRSCM) 12. Airbag Warning Lamp 13. Telltale Lamp 14. Weight Classification System (WCS) Module 15. Anchor Pretensioner (APT) |
