Kia Rio: Components Location

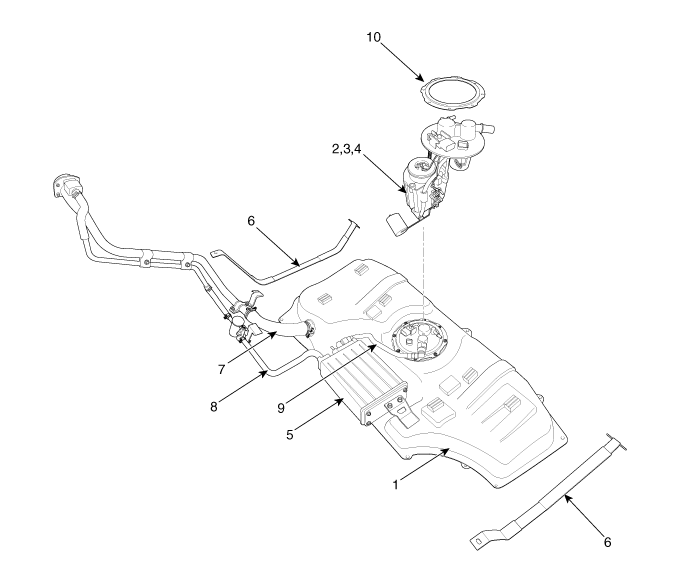

| 1. Fuel Tank 2. Fuel Pump 3. Fuel Filter 4. Fuel Pressure Regulator 5. Canister |
6. Fuel Tank Band 7. Fuel Filler Hose 8. Ventilation Hose 9. Vapor Tube 10. Fuel Pump Plate Cover |
| 1. High Pressure Fuel Pump 2. High Pressure Fuel Pipe |
3. Delivery Pipe 4. Injector |
|
| |
 |
|
Fuel Pressure Test (Low pressure system)Description
Heated Oxygen Sensor (HO2S) consists of zirconium and alumina and is installed
both upstream and downstream of the Manifold Catalytic Converter. The sensor
output voltage varies in accordance ...
Steering Gear box Components
1. Tie-rod end
2. Lock nut
3. Bellows clip
4. Bellows
5. Tie rod
6. Rack bar
7. Dust packing
8. Dust cap
9. Oil seal
10. Pinion plug
11. Pinion assembl ...
Heated Steering wheel Inpection
1.
Measure a resistance of NTC and Heated pad.
A.
NTC resistance(Black / Yellow, Black) - 10.0 kΩ ± 10%
(25°C(77°F))
...
