Kia Rio: Heated Steering wheel Description

Heated pads to grip the steering grip makes the fever.

Heated control unit

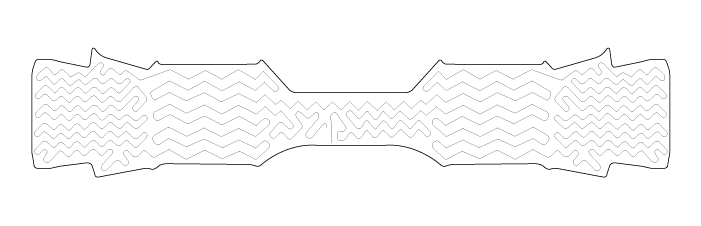

Heated pad

Specifications

Disaseembly

1. Loosen the screw(6ea) and remove the lower cover (A) from the steering wheel body. 2. Disconnect the heated steering wheel unit ...

Heated Steering wheel System Circuit Diagram

Terminal Function Housing Pin Function Wire color Pad A GND Back B HEATER Yellow C ...
