Kia Rio: If you have a flat tire (Tire mobility kit, if equipped) - Flat tire - What to do in an emergency - Kia Rio UB 2012-2020 Owners ManualKia Rio: If you have a flat tire (Tire mobility kit, if equipped)

For safe operation, carefully read and follow the instructions in this manual


For safe operation, carefully read and follow the instructions in this manual before use.

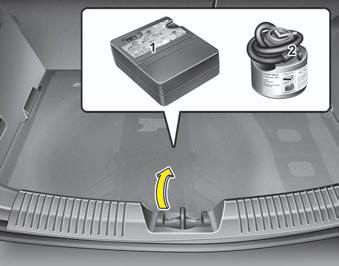

(1) Compressor

(2) Sealant bottle

The Tire Mobility Kit is a temporary fix to the tire and the tire should be inspected by an authorized Kia dealer as soon as possible.

CAUTION - One sealant for one tire

When two or more tires are flat, do not use the tire mobility kit because the supported one sealant of Tire Mobility Kit is only used for one flat tire.

WARNING - Tire wall

Do not use the Tire Mobility Kit to repair punctures in the tire walls. This can result in an accident due to tire failure.

WARNING - Temporary fix

Have your tire repaired as soon as possible. The tire may loose air pressure at any time after inflating with the Tire Mobility Kit.

Introduction


Introduction

With the Tire Mobility Kit you stay mobile even after experiencing a tire puncture.

The system of compressor and sealing compound effectively and comfortably seals most punctures in a passenger car tire caused by nails or similar objects and reinflates the tire.

After you ensured that the tire is properly sealed you can drive cautiously on the tire (distance up to 200 km (120 miles)) at a max. speed of 50 MPH (80 km/h) in order to reach a service station or tire dealer for the tire replacement.

It is possible that some tires, especially with larger punctures or damage to the sidewall, cannot be sealed completely.

Air pressure loss in the tire may adversely affect tire performance. For this reason, you should avoid abrupt steering or other driving maneuvers, especially if the vehicle is heavily loaded or if a trailer is in use.

The Tire Mobility Kit is not designed or intended as a permanent tire repair method and is to be used for one tire only.

This instruction shows you step by step how to temporarily seal the puncture simply and reliably.

Read the section "Notes on the safe use of the Tire Mobility Kit".

Notes on the proper use of the Tire Mobility Kit

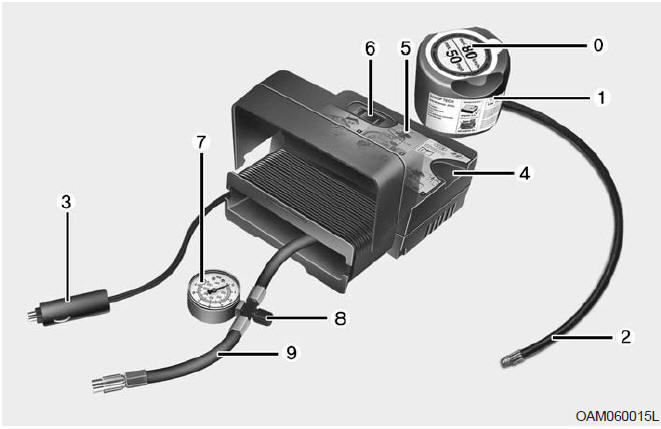

Components of the Tire Mobility Kit


Components of the Tire Mobility Kit

0. Speed restriction label

1. Sealant bottle and label with speed restriction

2. Filling hose from sealant bottle to wheel

3. Connectors and cable for the power outlet direct connection

4. Holder for the sealant bottle

5. Compressor

6. On/off switch

7. Pressure gauge for displaying the tire inflation pressure

8. Screw cap for reducing tire inflation pressure

9. Hose to connect compressor and sealant bottle or compressor and wheel

Connectors, cable and connection hose are stored in the compressor housing.

WARNING - Expired sealant

Do not use the Tire sealant after the sealant has expired (i.e. past the expiration date on the sealant container). This can increase the risk of tire failure.

WARNING - Sealant

Strictly follow the specified sequence, otherwise the sealant may escape under high pressure.

Using the Tire Mobility Kit

1.Detach the speed restriction label (0) from the sealant bottle (1), and place it in a highly visible place inside the vehicle such as on the steering wheel to remind the driver not to drive too fast.

2.Screw connection hose (9) onto the connector of the sealant bottle.

3.Ensure that screw cap (8) is closed.

4.Unscrew the valve cap from the valve of the defective wheel and screw filling hose (2) of the sealant bottle onto the valve.

5.Insert the sealant bottle into the housing (4) of the compressor so that the bottle is upright.

6.Ensure that the compressor is switched off, position 0.


6.Ensure that the compressor is switched off, position 0.

7.Plug the compressor power cord into the vehicle power outlet. 8.With the engine start/stop button position on or ignition switch position on, switch on the compressor and let it run for approximately 5~7 minutes to fill the sealant up to proper pressure. (refer to the Tire and Wheels, chapter 8). The inflation pressure of the tire after filling is unimportant and will be checked/corrected later.

Be careful not to overinflate the tire and stay away from the tire when filling it.

CAUTION - Tire pressure

Do not attempt to drive your vehicle if the tire pressure is below 29 PSI(200kpa). This could result in an accident due to sudden tire failure.

9. Switch off the compressor.

10. Detach the hoses from the sealant bottle connector and from the tire valve.

Return the Tire Mobility Kit to its storage location in the vehicle.

WARNING - Carbon monoxide

Do not leave your vehicle running in a poorly ventilated area for extended periods of time. Carbon monoxide poisoning and suffocation can occur.

Distributing the sealant

11. Immediately drive approximately 4~6miles (7~10km or about 10min) to evenly distribute the sealant in the tire.

Do not exceed a speed of 50 mph (80 km/h). If possible, do not fall below a speed of 12 mph (20 km/h).

While driving, if you experience any unusual vibration, ride disturbance or noise, reduce your speed and drive with caution until you can safely pull off of the side of the road. If this occures, call for roadside service or towing.

When you use the Tire Mobility Kit, the tire pressure sensors and wheel may be damaged by sealant, remove the sealant stained with tire pressure sensors and wheel and inspect in authorized dealer

Checking the tire inflation pressure

1.After driving approximately 4 ~6miles(7~10km or about 10min), stop at a safe location.

2.Connect connection hose (9) of the compressor directly to the tire valve.

3.Plug the compressor power cord into the vehicle power outlet.

4.Adjust the tire inflation pressure to the recomended tire inflation.

With the ignition switched on, proceed as follows.

To increase the inflation pressure :

Switch on the compressor, position I. To check the current inflation pressure setting, briefly switch off the compressor.

✽ NOTICE

The pressure gauge may show higher than actual reading when the compressor is running. To get an accurate tire pressure, the compressor needs to be turned off.

CAUTION - Tire pressure sensor

When you use the Tire Mobility Kit including sealant not approved by Kia, the tire pressure sensors may be damaged by sealant. The sealant on the tire pressure sensor and wheel should be removed when you replace the tire with a new one and inspect the tire pressure sensors in authorized dealer.

Technical Data

System voltage: DC 12 V

Working voltage: DC 10 - 15 V Amperage rating: max. 15 A

Suitable for use at temperatures: -22 ~ +158°F (-30 ~ +70°C)

Max. working pressure: 87 psi (6 bar)

Size Compressor: 6.7 x 5.9 x 2.4 in. (170 x 150 x 60 mm)

Sealant bottle: 3.3 x 3.0 ø in. (85 x 77 ø mm)

Compressor weight: 1.8 lbs (0.8 kg)

Sealant volume: 12.2 cu. in. (200 ml)

Flat tire
Jack and tools The spare tire, jack, jack handle and wheel lug nut wrench are stored in the luggage compartment. Remove the luggage under tray out of the way to reach the equipment. (1) Jack ha ...
Towing
Towing service If emergency towing is necessary, we recommend having it done by an authorized Kia dealer or a commercial tow-truck service. Proper lifting and towing procedures are necessary to ...
