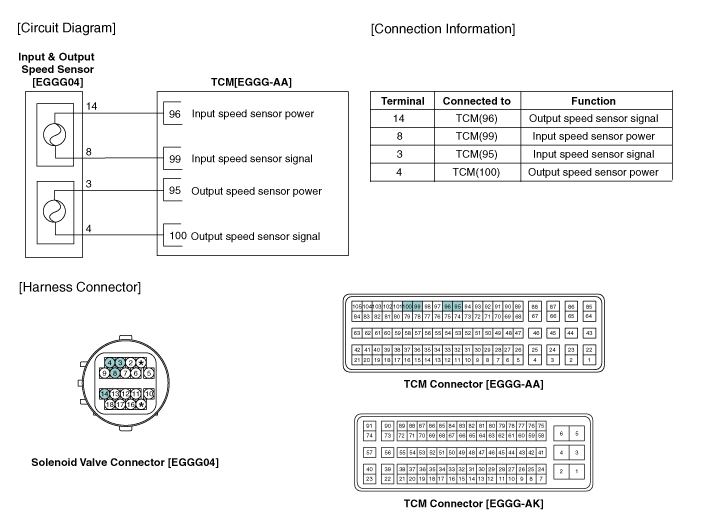

Kia Rio: Input Speed Sensor Circuit Diagram

Input Speed Sensor Specifications

▷ Type: Hall effect sensor Operation condition [°C(°F)] ((-)40 ~ 150)) -40 ~ 302 Air gap(mm)in. (1.2 ~ 1.8) 0.0472 ~ 0.0709 Output volta ...

Input Speed Sensor Signal Waveform

Fig 1) Input/Output speed sensor at low speed Fig 2) Input/Output speed sensor at high speed ...
