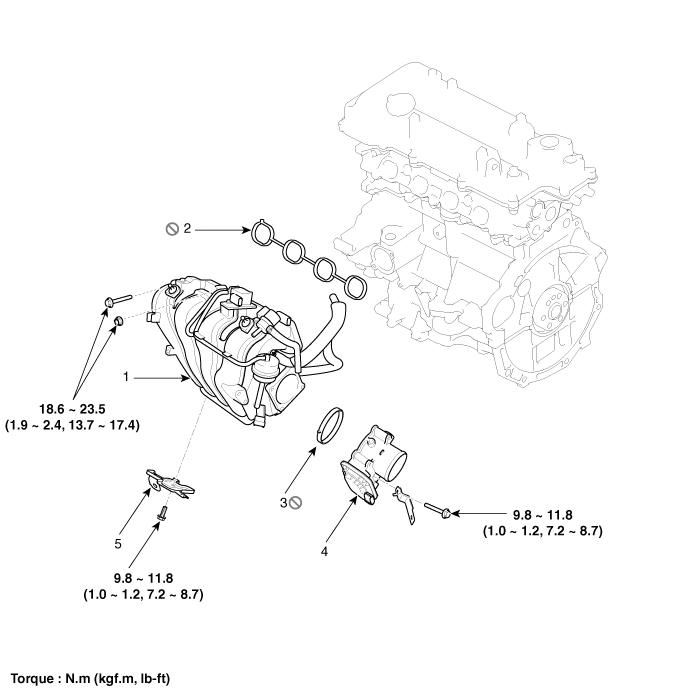

Kia Rio: Intake Manifold: Components
| 1. Intake manifold 2. Intake manifold gasket 3. Electronic throttle body gasket |
4. Electronic throttle body 5. Bracket |
Intake Manifold: Removal and InstallationISG (Idle stop and go) system
Your vehicle may be equipped with the ISG system, which reduces fuel consumption
by automatically shutting down the engine, when the vehicle is at a standstill.
(For example : red light, stop sign ...
Manual Transaxle Components
1. Transaxle support mounting bracket
2. Control shaft complete
3. Back up lamp switch
4. Vehicle speed sensor
...
Specification
Item
Specification
Coil resistance (Ω)
30.0 ~ 35.0 [20°C(68°F)]
...
