Kia Rio: Schematic Diagrams - SRSCM - Restraint - Kia Rio UB 2012-2020 Service ManualKia Rio: Schematic Diagrams

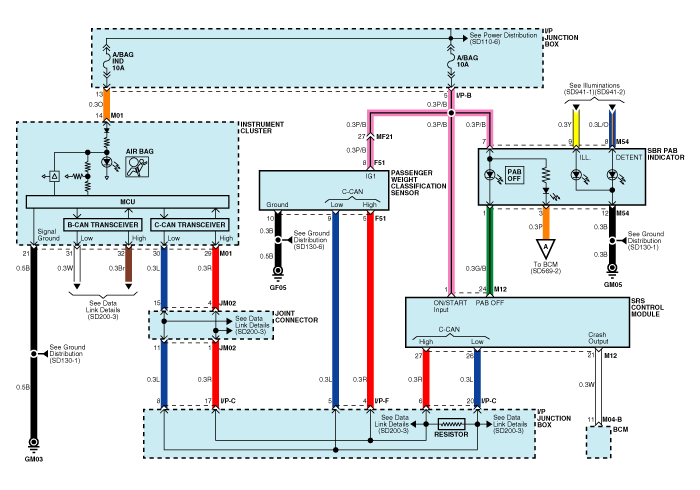

Circuit Diagram (1)

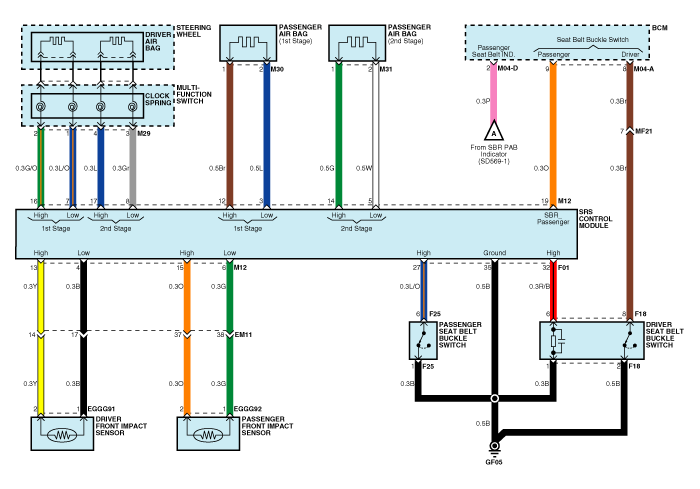

Circuit Diagram (2)


Circuit Diagram (2)

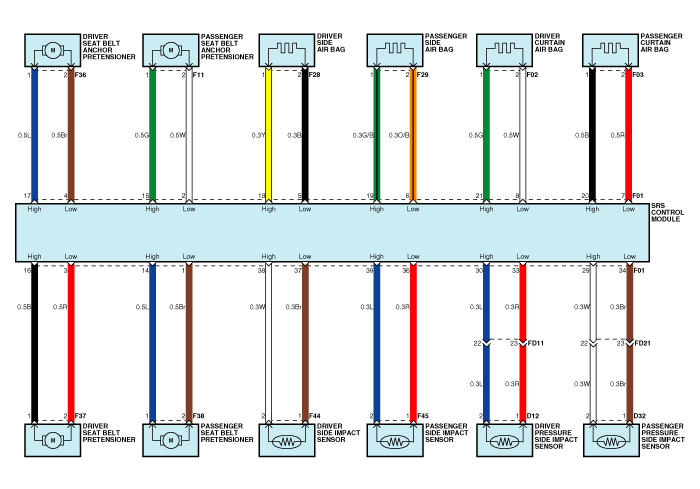

Circuit Diagram (3)


Circuit Diagram (3)

SRSCM Connector Terminal


SRSCM Connector Terminal


Pin
Function (Connector A)
Pin
Function (Connector B)
1
Ignition
1
Seat belt pretensioner [Passenger] Low
2
-
2
Anchor Pretensioner [Passenger] Low
3
(1st stage) Passenger airbag Low
3
Seat belt pretensioner [Driver] Low
4
Front impact sensor [Driver] Low
4
Anchor Pretensioner [Driver] Low
5
(2nd stage) Passenger airbag Low
5
Side airbag [Driver] Low
6
Front impact sensor [Passenger] Low
6
Side airbag [Passenger] Low
7
(1st stage) Driver airbag Low
7
Curtain airbag [Passenger] Low
8
(2nd stage) Driver airbag Low
8
Curtain airbag [Driver] Low
9
-
9
-
10
-
10
-
11
-
11
-
12
(1st stage) Passenger airbag High
12
-
13
Front impact sensor [Driver] High
13
-
14
(2nd stage) Passenger airbag High
14
Seat belt pretensioner [Passenger] High
15
Front impact sensor [Passenger] High
15
Anchor Pretensioner [Passenger] High
16
(1st stage) Driver airbag High
16
Seat belt pretensioner [Driver] High
17
(2nd stage) Driver airbag High
17
Anchor Pretensioner [Driver] High
18
-
18
Side airbag [Driver] High
19
Seat belt reminder
19
Side airbag [Passenger] High
20
-
20
Curtain airbag [Passenger] High
21
Crash Output
21
Curtain airbag [Driver] High
22
-
22
-
23
-
23
-
24
Telltale lamp
24
-
25
-
25
-
26
CAN_Low
26
-
27
CAN_High
27
Seat belt buckle switch [Passenger]


28
-


29
Pressure side impact sensor [Passenger] High


30
Pressure side impact sensor [Driver] High


31
-


32
Seat belt buckle switch [Driver]


33
Pressure side impact sensor [Driver] Low


34
Pressure side impact sensor [Passenger] Low


35
Ground


36
Side impact sensor [Passenger] Low


37
Side impact sensor [Driver] Low


38
Side impact sensor [Driver] High


39
Side impact sensor [Passenger] High
