Kia Rio: Sunroof Components

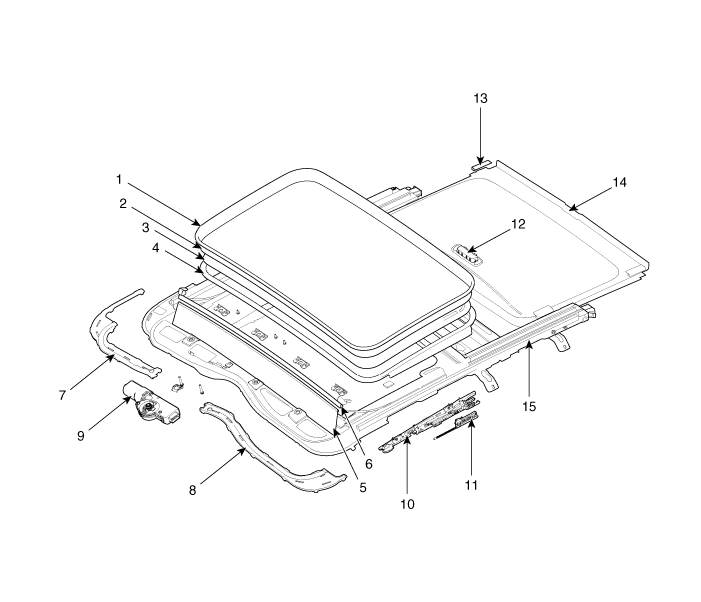

| 1 . Glass panel assembly 2 . Glass panel 3 . Reinforcement glass 4 . Encapsulated glass panel 5 . Wind deflector net assembly 6 . Wind deflector beam 7 . Plate cover [RH] 8 . Plate cover [LH] |
9 . Motor assembly 10 . Mechanism assembly 11 . Drive cable assembly 12 . Handle sunshade bracket 13 . Sunshade slide pad 14 . Sunshade assembly 15. Sunroof frame assembly |
