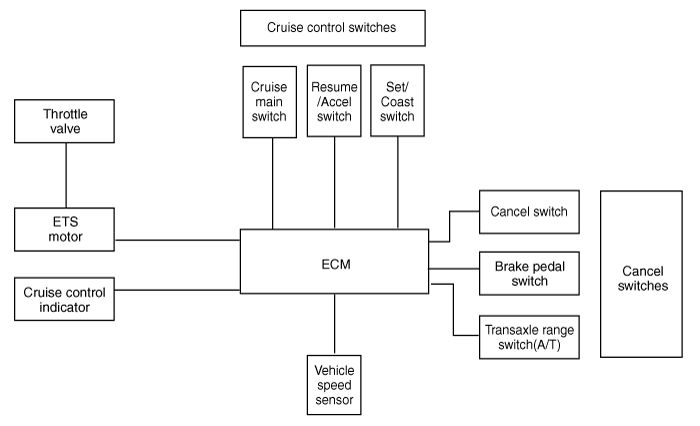

Kia Rio: System Block Diagram
| Component part |
Function |
| Vehicle speed sensor |
Converts vehicle speed to pulse. |
| ECM |
Receives signals from sensor and control switches. |
| Cruise control indicator |
Illuminate when CRUISE main switch is ON (Built into cluster) |
| Cruise control switches |
Cruise main switch |
Switch for automatic speed control power supply. |
| Resume/Accel switch |
Controls automatic speed control functions by Resume/Accel switch
(Set/Coast switch) |
| Set/Coast switch |
|
| Cancel switches |
Cancel switch |
Sends cancel signals to ECM. |
| Brake pedal switch |
|
| Transaxle range switch (A/T) |
|
| ETS(Electronic Throttle System) motor |
Regulates the throttle valve to the set opening by ECM. |
