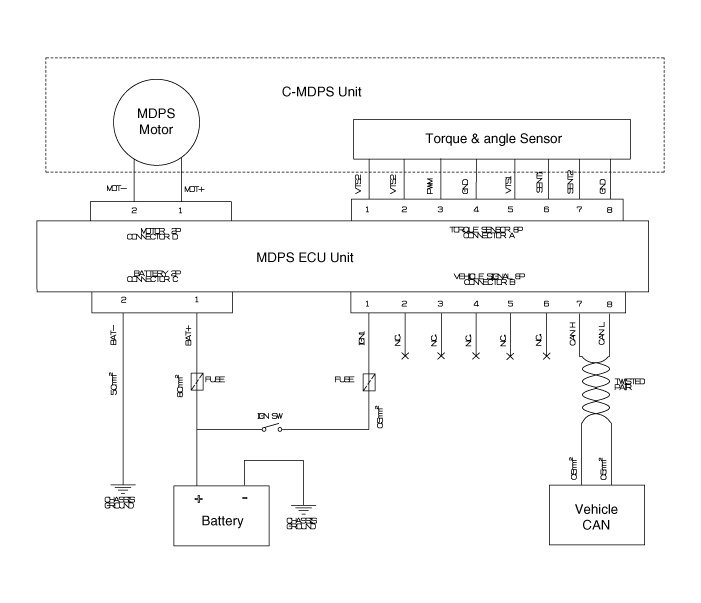

Kia Rio: System Circuit Diagram
| Connector |
Pin no |
Pin name |
Descrption |
Specifcation |
| TAS sensor signal 8P connector A |
1 |
VTS2 |
SENT2 Supply vatage |
- |
| 2 |
VTS2 |
PWM Supply vatage |
- |
|
| 3 |
PWM |
TAS PWM signal |
- |
|
| 4 |
GND |
VTS2 GND |
- |
|
| 5 |
VTS1 |
SENT1 Supply vatage |
- |
|
| 6 |
SENT1 |
TAS SENT1 signal |
- |
|
| 7 |
SENT2 |
TAS SENT2 signal |
- |
|
| 8 |
GND |
VTS1 GND |
- |
|
| Vehicle signal 8P connector B |
1 |
IGN1 |
Ignition signal |
ECU operating vatage : 90V ~ 160V |
| 2 |
NC |
Nbt connected |
- |
|
| 3 |
NC |
Nbt connected |
- |
|
| 4 |
NC |
Nbt connected |
- |
|
| 5 |
NC |
Nbt connected |
- |
|
| 6 |
NC |
Nbt connected |
- |
|
| 7 |
CAN H |
CAN BUS High line |
Reference to HMC ES96480-00 |
|
| 8 |
CAN L |
CAN BUS Low line |
Reference to HMC ES96480-00 |
|
| Battery 2P connector C |
1 |
BAT + |
Battery positive |
ECU operating vatage : 9.0V ~16.0V Peak < I < 65A @ DC12V, MDPS Fu operation Leakage < I < 0.5mA @ DC12V, MDPS OFF |
| 2 |
BAT - |
Cirassis ground |
- |
|
| Motor 2P connector D |
1 |
MOT + |
Motor wire |
- |
| 2 |
MOT - |
Motor wire |
- |
